WARM AIR GENERATOR
Rear smoke discharge
Technical data
| Dimension (PxLxH) |
670x860x1453 (mm) |
|
Wheigh |
180 kg |
|
Feed box total capacity |
120 kg |
|
Smoke outlet diameter |
Ø 80 mm |
|
Ducting system outlet diameter |
Ø 7x60 mm |
|
Efficiency min/max |
>87% |
|
Global thermal power |
16 kW |
|
Power consumption min/max |
59-534 W |
|
Air volume introduced into the environment min/max |
300-1000 mc/h (5 fans) 300-1400 mc/h (7 fans) |
|
Hourly consumption |
2,1-5,71 kg/h |
Covering
High temperature painted steel
Innovative technology SVS SYSTEM
The star-valve system means a controlled amount Pellet co2 of the fuel is transported, thus improving combustion and simultaneously increasing the output while reducing emissions
The stove includes
• Temperature probe
• Daily/weekly timer set
• Cast iron burner
Optional
• PN037-A02: GPRS remote control by phone
• VATL8633BC003: Control (internal home)
• EC-CXX006: inox burner holes 3mm
• KITCANAL: kit for ducting system
• GRBI060: Nozzle for hot air outlet
• FLAXLC060: Tube in aluminium flexible white color
Flow ducting system10 m straight pipes insulated (guaranteed only with original pipes).
Possibitily to customize the configuration of fans and ducting system

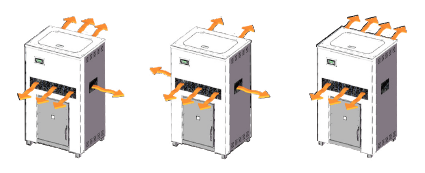

Here are some possible configurations
| Version 5 fans |
Version 7 fans |
|
|
 |
| 5 Fans It has n. 3 room sensors for a group of fri front tole red, fan Dx / ductable Yellow, blue fan Left / ductable. Possibility of regulating the fan in three different environments in proportion to the temperature set by the control unit on board the machine |
7 Fans Possibility of regulating the fan in three different environments in proportion to the temperature set by the control unit on board the machine |
|
|
 |
